White iron snail cyclone tube

Category：Galvanized spiral air duct
Click Count：56
Release Date：2025-12-24
Online Inquiry

Detailed introduction

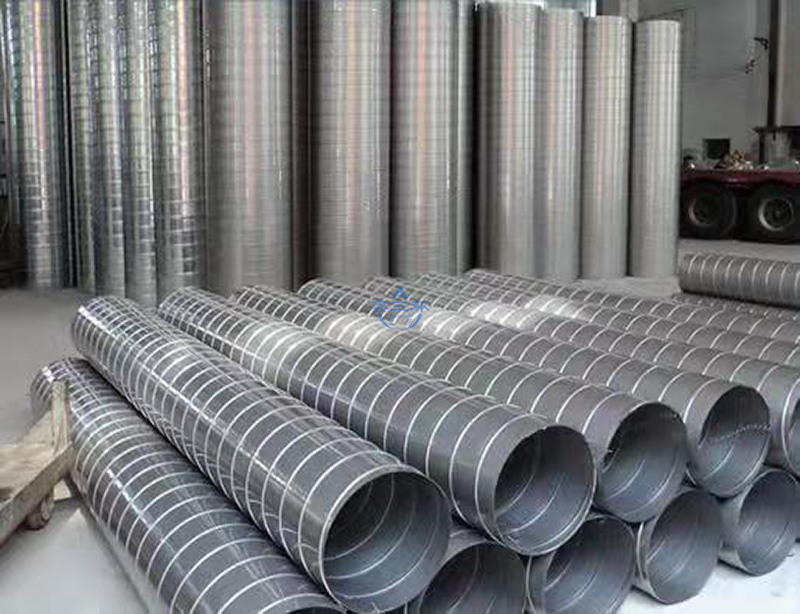

Spiral ducts in the market are generally divided into galvanized spiral ducts and stainless steel spiral ducts according to their materials. It is mainly used to connect the air circulation between two places, playing a role in ventilation and air permeability. The installation of spiral ducts reduces the connection points between pipes, reducing leakage at the joint of fittings to a lower degree. The typical length of spiral ducts is 3-6m, while the typical length of rectangular ducts is only 1-1.5m. Only one pipe joint is required to connect two spiral ducts, while traditional rectangular duct connections often require a completely independent double flange system.

Product Parameters:

Name: Stainless steel welded air duct

Specification: ∅ 100-∅ 2000 (mm)

Thickness: 1.0/1.2/1.5/2.0/2.5/3.0/4.0/5.0 (mm)

Material: Stainless steel/galvanized sheet/color steel

Processing length: recommended 2.44-2.5 meters/section (special can also be 3-6 meters)

Packaging and transportation: Original goods are packaged at your own expense, except for special circumstances
